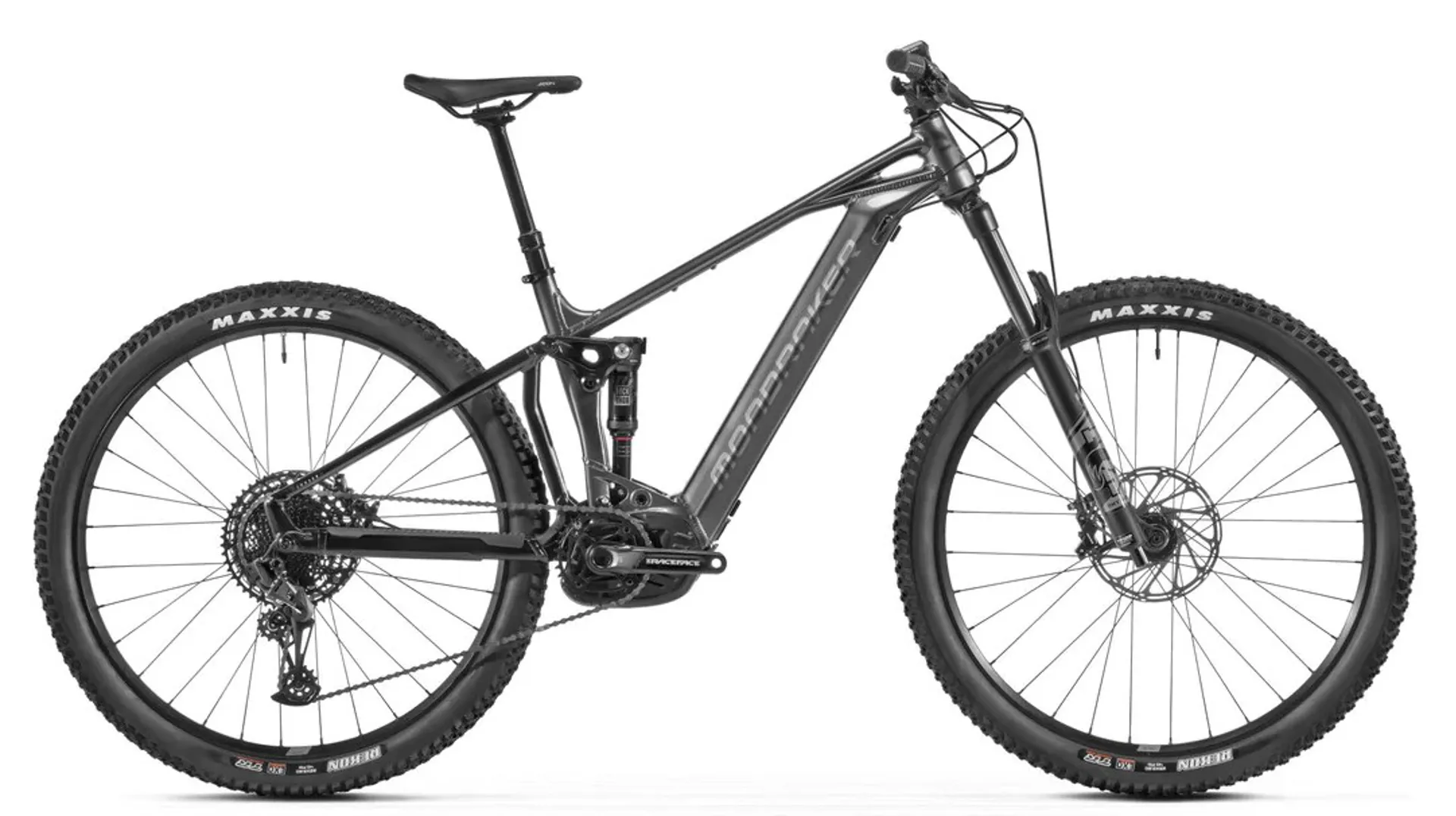

Future-Proof E-Bike Technology At An Unbeatable Pricepoint!The Mondraker Chaser 750 takes the highly praised Chaser enduro platform and ups the spec to the latest in Bosch's E-Bike offering! Featuring the new 750 wH largest capacity battery avilable in the performance E-Bike market, the Gen4 Bosch Performance CX motor and a Kiox 300 LED controller, the Chaser 750 presents the ultimate affordable foothold into the latest E-Bike tech.
How does the rest of the Chaser 750 spec square up to it's E-Bike credentials? Boasting a highly capable suspension package, SRAM Eagle drivetrain and Maxxis tubeless ready tyres, the Chaser 750 is ready for serious rides straight out of the box and presents an excellent platform for future upgrades.
SpecificationsFRAME: Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
SIZES: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
REAR SHOCK: RockShox Deluxe Select R Debonair, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
SHOCK SETTINGS: Light compression, Light rebound, 1 Token
FORK:Fox 36 29 Float FIT GRIP EVOL Rythm, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, Low-speed rebound, air preload
HEADSET: Onoff Saturn tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
STEM: Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore
HANDLEBAR: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore
GRIPS: Onoff Twin, 1lock-on, 135mm
SEATPOST: Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
SADDLE:Fizik Terra Aidon X5 145mm
FRONT BRAKE: Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
REAR BRAKE: Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
BRAKE LEVER: Sram G2 R, tool-free reach adjust
RIMS: MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
SPOKES: CN round stainless steel
FRONT HUB: Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
REAR HUB: Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts
FRONT TYRE: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
REAR TYRE: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
CRANKSET: Race Face Aeffect ebike, 165mm
CHAINRING: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
CHAIN: Sram SX Eagle, 12s, Powerlock
REAR DERRAILLEUR: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
SHIFT LEVERS: Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
CASSETTE: Sram PG-1210, 11-50T, 12s
MOTOR : Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3
BATTERY: Bosch Powertube 750Wh
DISPLAY: Bosch Kiox 300/LED Remote
DERAILLEUR HANGER: Mondraker M068
