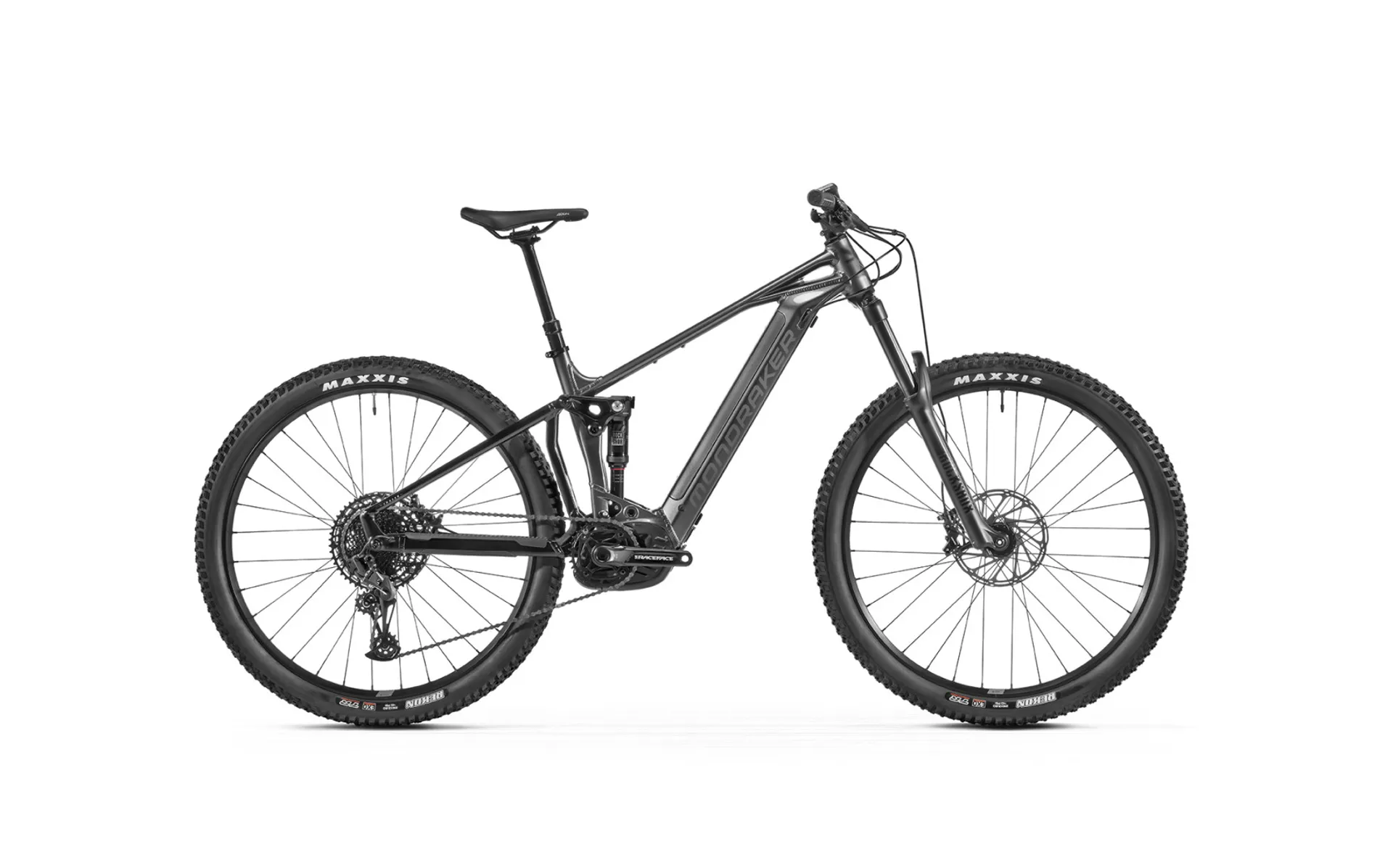

2022 Mondraker Chaser Full Suspension Aluminium E-Bike in Grey

Season:2022

Brand:Mondraker

Code:CHASER

Mondraker's entry level full suspension E-Bike is anything but basic!

Boasting similar geometry and ride characteristics to it's big brother the Crafty and the Dusk, the Mondraker Chaser brings that same ride excitement and quality of build at a more wallet friendly price point.

Mondraker's spec options for the Chaser have been expertly thought out: it boasts a Rockshox Deluxe Select R Shock tuned specifically for the frame, a wide range and reliable SRAM SX Eagle drivetrain to match up with it's Bosch Gen4 motor and 625wH battery and a premium set of Fizik, Raceface and OnOff finishing kit.

Couple all this with a Tubeless Ready set of wheels and Maxxis tyres and you have a bike that has excellent bones, built to take you on all day long adventures for years to come!

Technical Information

Frame
Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock
RockShox Deluxe Select R Debonair, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings
Light compression, Light rebound, 1 Token
Fork
RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset
ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
ONOFF Diamond, 1lock-on, 135mm
Seatpost
ONOFF Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
Saddle
FIZIK Terra Aidon X5 145mm
Front brake
SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
SRAM G2 R, tool-free reach adjust
Rims
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
Spokes
CN round stainless steel
Front hub
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Rear hub
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts
Front tire
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Rear tire
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset
Race Face Aeffect ebike, 165mm
Rings
SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain
SRAM SX Eagle, 12s, Powerlock
Rear derrailleur
SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers
SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Casette
SRAM PG-1210, 11-50T, 12s
Derailleur hanger
Mondraker M068
Weight
24.8 kg
Display
Bosch Purion
Motor
Bosch Performance Line CX Cruise (25Km/h) GEN4
Battery
Bosch Powertube 625Wh

Sizing Information

FRAME SIZE	S	M	L	XL
A	Seattube length	380 mm	420 mm	450 mm	490 mm
B	Toptube length	605 mm	625 mm	650 mm	670 mm
C	Bottom bracket drop	-25	-25mm	-25 mm	-25 mm
D	Bottom bracket height	336 mm	336 mm	336 mm	336 mm
E	Chainstay length	455 mm	455 mm	455 mm	445 mm
F	Seat tube angle	73,5°	73,5°	73,5°	73,5°
G	Effective seattube angle	76°	76°	76°	76°
H	Headtube angle	65,5°	65,5°	65,5°	65,5°
I	Fork Offset	44 mm	44 mm	44 mm	44 mm
J	Wheelbase	1225 mm	1245 mm	1265 mm	1285 mm
K	Headtube length	110 mm	110mm	130 mm	130 mm
L	Reach	450 mm	470 mm	490 mm	510 mm
M	Stack	622 mm	622 mm	640 mm	640 mm
