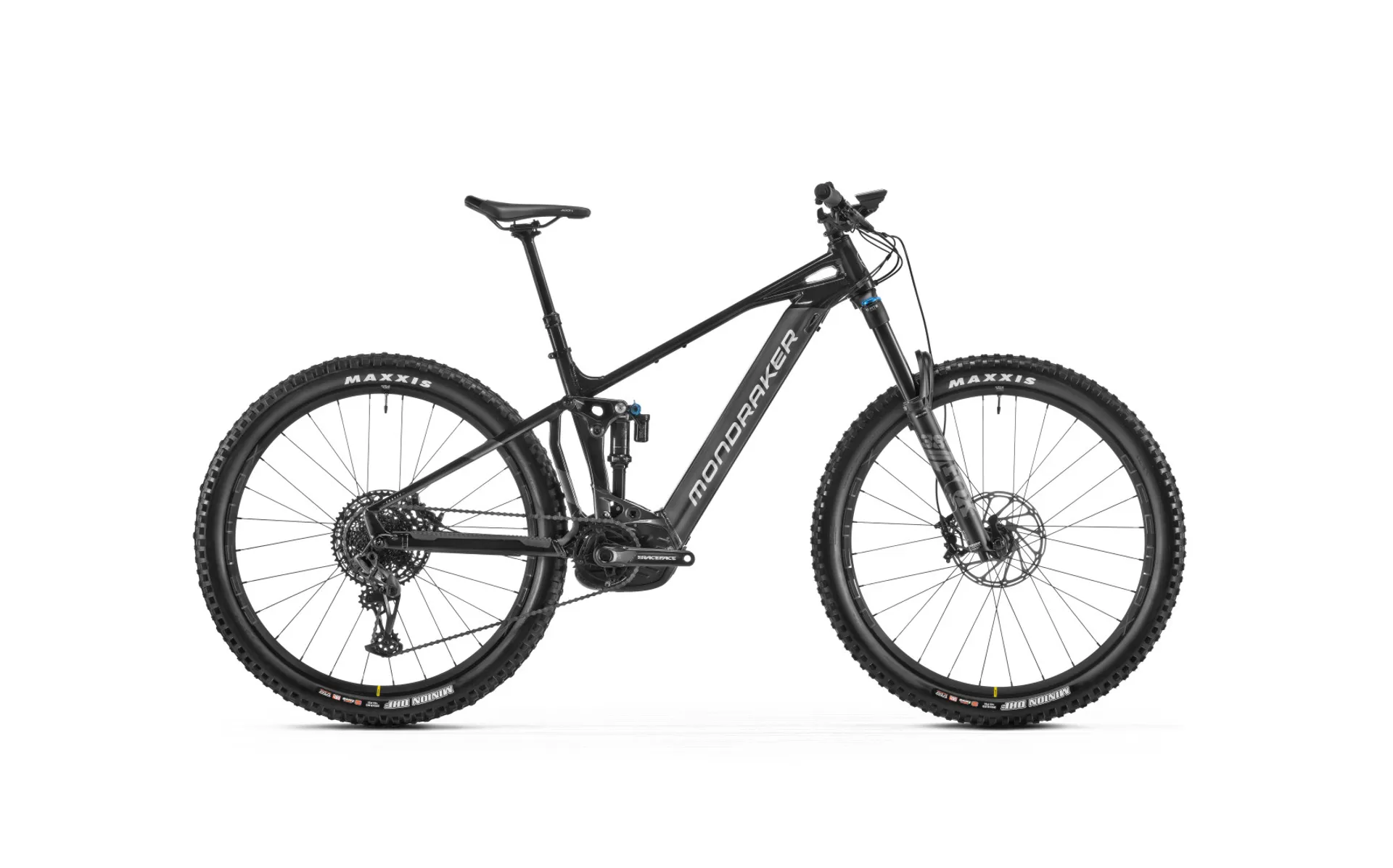

2022 Mondraker Crafty R Full Suspension Alloy Electric Bike in Black

Season:2022

Brand:Mondraker

Code:CRAFTYR

As one of the first E-Bikes to boast the new Bosch Smart System and 750wh battery, the Mondraker Crafty R is an E-Enduro bike ready to you further, faster and...funner? than ever before!

With a premium Fox Float Suspension package, 160mm front, 150mm rear travel, SRAM GX/NX drivetrain and a bombproof Mavic E-Deemax wheelset, the only thing that this bike will leave you wanting is more laps!

Please Contact Us For E-Bike Delivery Options

Technical Information

Frame
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal battery with integrated alloy cover, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings
Medium compression, medium rebound, air volume spacer 0.2
Fork
Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset
ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
ONOFF Diamond, 1lock-on, 135mm
Seatpost
ONOFF Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
Saddle
FIZIK Terra Aidon X5 145mm
Front brake
SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
SRAM G2 R, tool-free reach adjust
Rims
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes
Mavic J-bend duble butted, contactless lacing
Front hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
Front tire
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset
Race Face Aeffect ebike, 165mm
Rings
SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain
SRAM SX Eagle, 12s, Powerlock
Rear derrailleur
SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers
SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Casette
SRAM PG-1210, 11-50T, 12s
Derailleur hanger
Mondraker M068
Weight
25.1 kg
Display
Bosch Kiox 300
Motor
Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3
Battery
Bosch Powertube 750Wh
