The Merida eone-sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in merida's 50 year history.
The Merida eone-sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in merida's 50 year history.
Merida

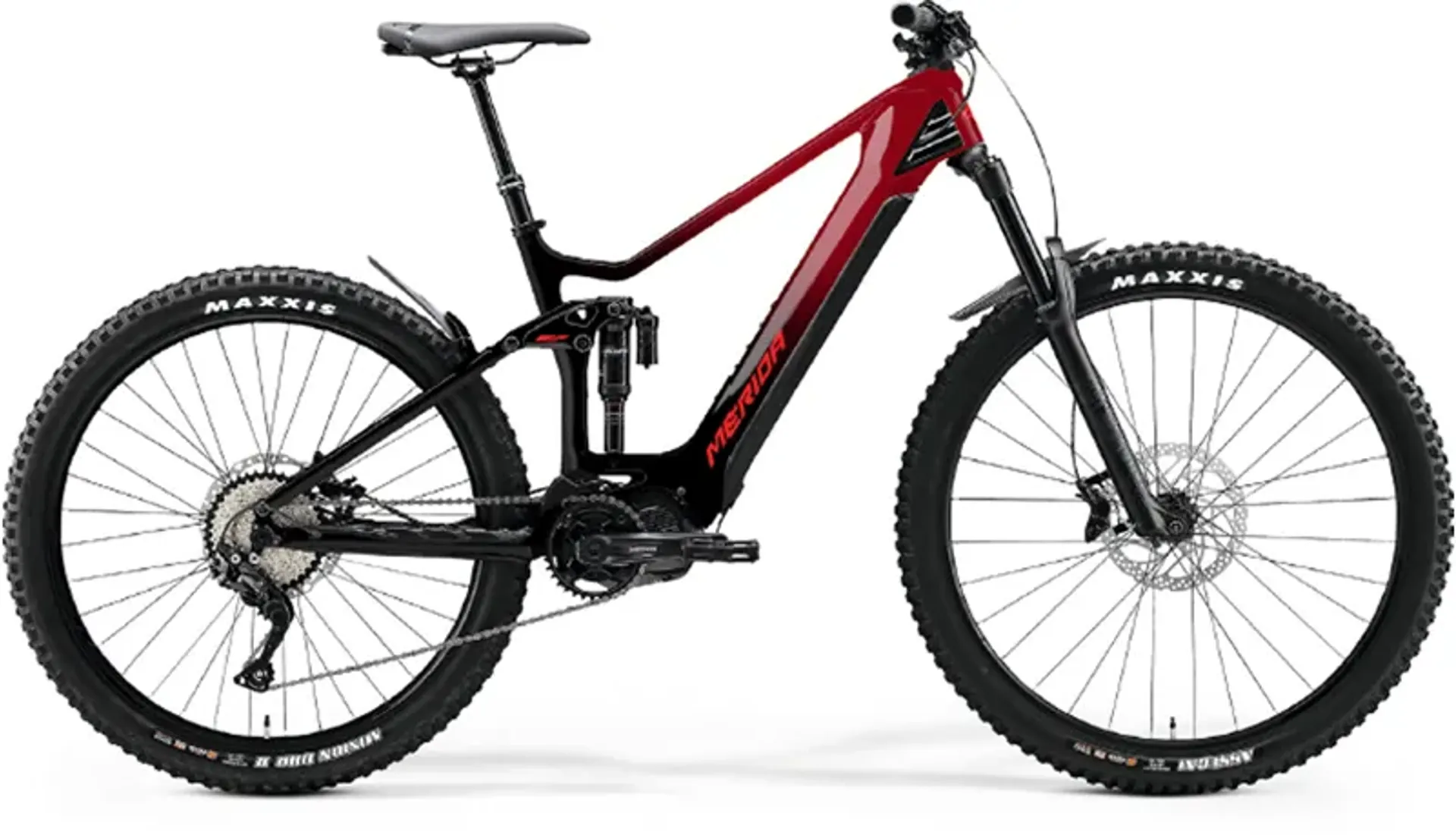

Merida eOne-Sixty 9000 Carbon Full Suspension EMTB In Red

£4,700.00 £7,850.00 40% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Please See Our Returns Page For Full Returns Policy

RETURNS

----
Our policy

Our policy lasts 14 days. If 14 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

In relation to the consumer rights act of 2015 customers have up to 30 days to make a return in the case of faulty, damaged, or not as described goods.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging. The customer has the right to reject goods that are faulty, damaged or not as described and the right to a repair, replacement or refund in this circumstance.

Any goods purchased on special order (products not currently or regularly stocked by Chester Cycle Hub Ltd.) are strictly not eligible for refund or return due to incorrect selection by the customer or the customer changing their mind post-purchase (If the special order is faulty, damaged or not as described, in accordance with the consumer rights act of 2015 it will be eligible for return and either refund, replacement or repair).

Please note that in some case, replaced, repaired or exchanged items may differ in colour or style due to the originally purchased product if the originally purchased product is no longer available, discontinued or otherwise changed.

Your legal rights
When you buy goods from a business, in law you have a number of rights as a consumer. These include the right to claim a refund, replacement, repair and/or compensation where the goods are faulty or misdescribed.



Merida eOne-Sixty 9000 Carbon Full Suspension EMTB In Red

Season:2023

Brand:Merida

Code:P-N925

The Merida eone-sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in merida's 50 year history.

E-mountainbike gave it the 'best in test' in their 'best of 2021' emtb group test, world of MTB also gave it their 'best of 2021' award and freeride gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few. The merida eone-sixty is built around compact Shimano steps motors, the Shimano design ethos is around natural riding, and the physical design of the motor allows merida designers to create very short chainstays which deliver agile and regular bike geometry.

To give the e-full suspension bikes precise steering, fantastic rolling over obstacles behaviour yet maximum traction, Merida have combined a 29er front wheel with a 2.5 tyre and a 650b rear wheel, equipped with a slightly wider 2.6 tyre. The perfect combination of precision, playfulness and traction allowing you to feel planted when tackling the most demanding of trails. The carbon frame incorporates an internal block which prevents the bars turning and damaging the frame in the event of a tumble.

The signature thermo gate vents at the top of the down tube allow heat to dissipate and maintain the temperature of the battery. Shimano'S e-tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.
Technical Information
  • Frame
    CFA II Carbon front with 6016 aluminium rear. Integrated battery. Satellite on/off switch, on-bike charging port, thermo gate. Internal cable routing. Tapered head tube, Internal Block. 148 x 12mm axle standard. Max. tyre size 27.5 x 2.8.
  • Rear Shock
    FOX Float DPX2 Elite; platform
  • Fork
    FOX 38 Elite eMTB+ Air; 160mm travel; Tapered; 51mm fork offset. Max. tyre size: 29 x 2.6
  • Headset
    Merida-8152
  • Stem
    Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
  • Handlebar
    Merida Expert eTR; 780mm wide; 20mm rise
  • Grip
    Merida Expert EC
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano XT
  • Brake Calipers
    Front: Shimano XT; 4 piston hydraulic disc brake caliper with Shimano RT-MT900; 203mm rotor Rear: Shimano XT; 4 piston hydraulic disc brake caliper with Shimano RT-EM910; 203mm rotor
  • Tyres
    Front: Maxxis Assegai; 29 x 2.5; Kevlar bead, folding; TR EXO+ 3C MaxxGrip Rear: Maxxis DHR II; 27.5 x 2.6; Kevlar bead, folding; 3C EXO+ TR
  • Wheel Size
    29 / 27.5
  • Wheels
    Rims: Part of wheelset - DT Swiss Spline HX1501 ONE 30 boost; 30mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves included) Spokes: part of wheelset Front Hub: Part of wheelset - DT Swiss Spline HX1501 ONE 30 boost; 110x15mm; center lock Rear Hub: Part of wheelset - DT Swiss Spline HX1501 ONE 30 boost; 148x12mm; center lock; Merida Expert TR axle; including removable lever, 6/4mm allen key
  • Speeds
    11
  • Rear Derailleur
    Shimano XT RDM8130 Shadow+ 11
  • Shift Levers
    Shimano XT M8130 and Shimano SL -MT800-IL dropper lever
  • Chain
    CNLG500
  • Cassette
    Shimano LG600; 11-50 teeth; 11 speed
  • Chainset
    Shimano CRE80-B; 34 tooth chainring with Shimano FCEM900; hollow crank 165mm all sizes; MRP 1x chain device
  • Bottom Bracket
    Part of Shimano Steps motor
  • Pedals
    VP Components, VPE-527
  • Saddle
    Merida Expert CC; V-mount including Merida multitool
  • Seat Post
    Merida Expert TR; 30.9mm diameter; in-line; Drop: 100mm (XS), 125mm (S), 150mm (M), 170mm (L/XL)
  • Motor
    Shimano E8036; 630Wh internal battery, Shimano Steps EP8; 85Nm
  • Battery Capacity
    630 Wh
  • eBike Display
    Shimano SC-EM800
