Mondraker

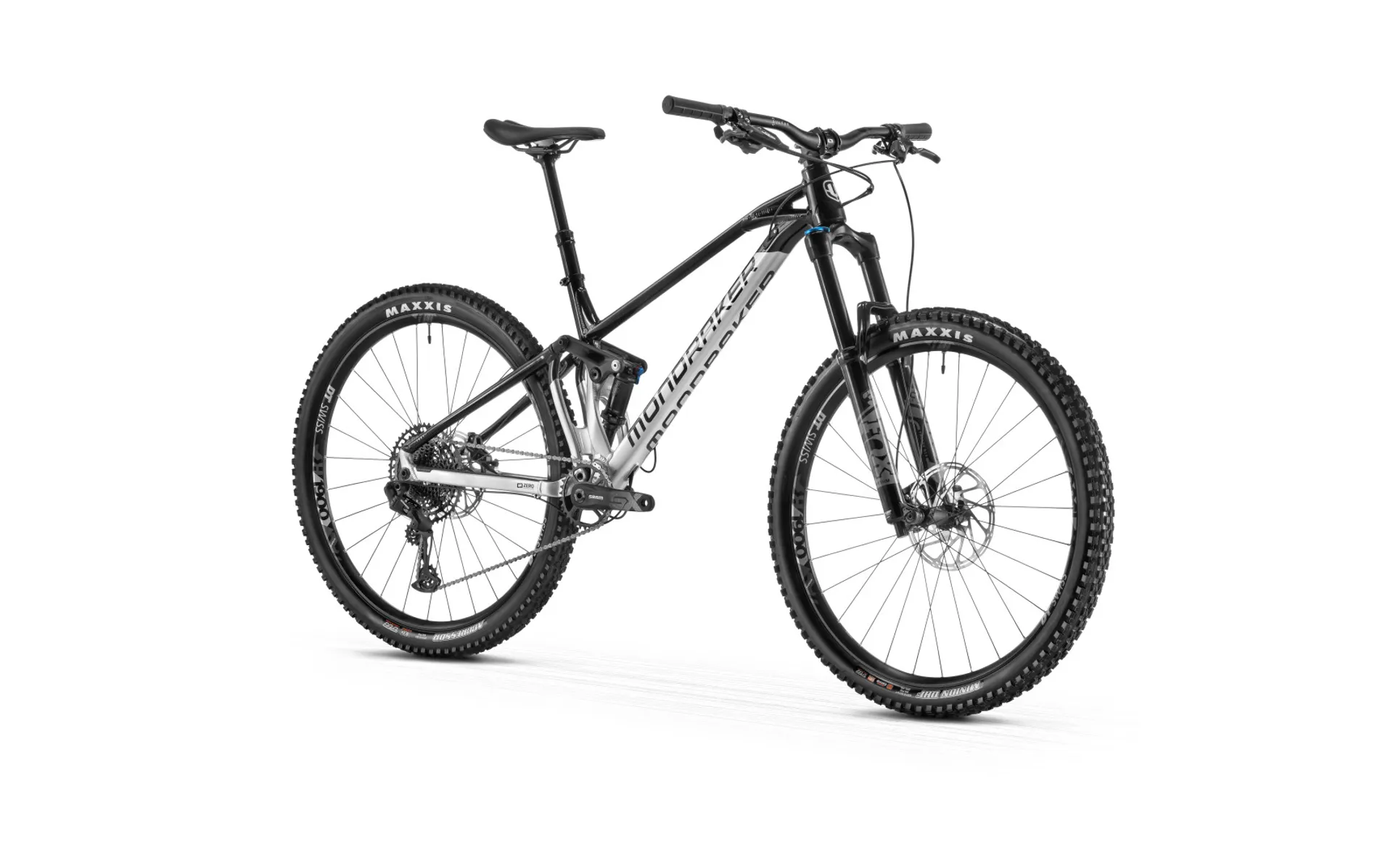

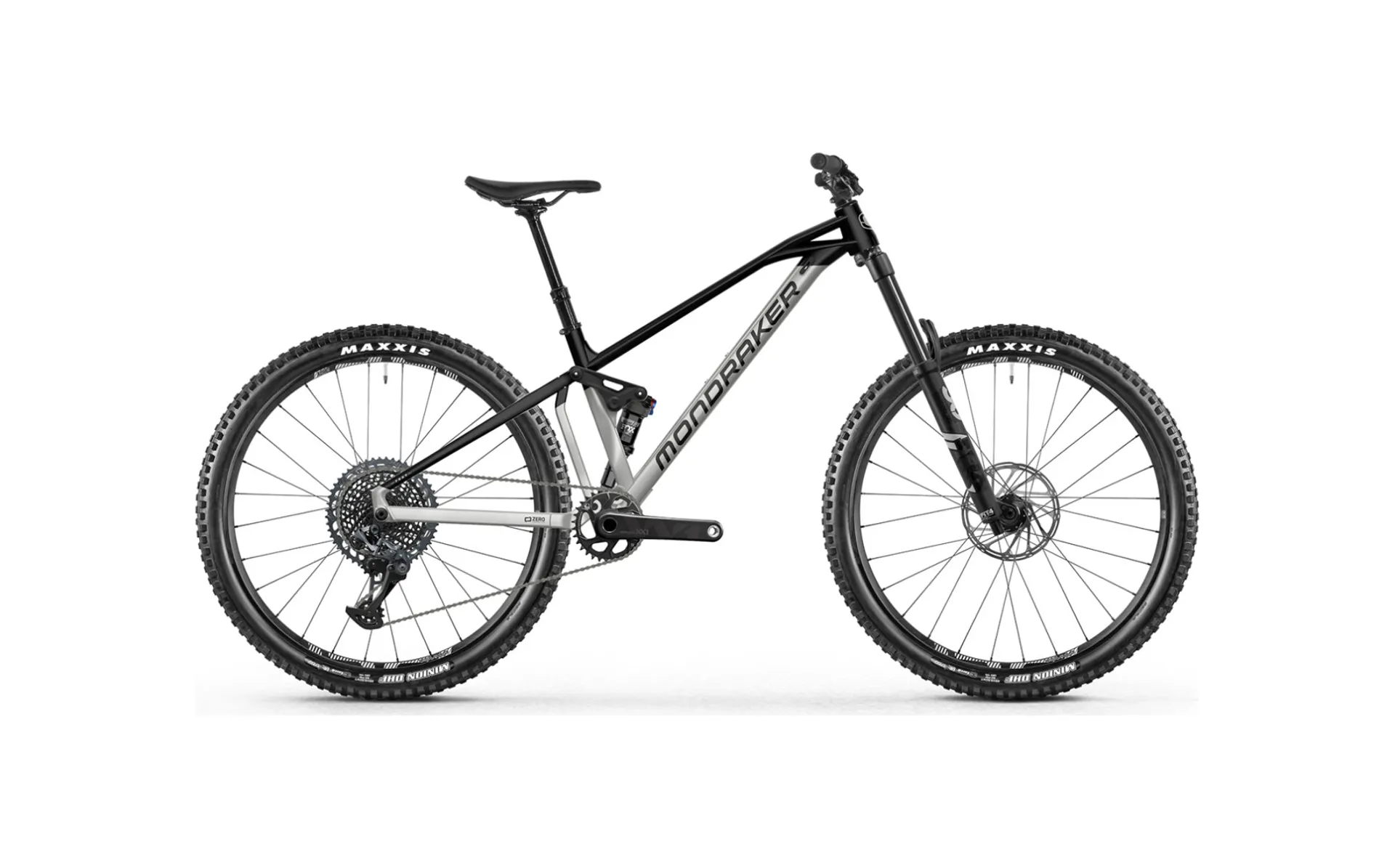

2022 Mondraker Foxy Full Suspension Aluminium Mountain Bike in Black

£3,299.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Please See Our Returns Page For Full Returns Policy

RETURNS

----
Our policy

Our policy lasts 14 days. If 14 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

In relation to the consumer rights act of 2015 customers have up to 14 days to make a return in the case of faulty, damaged, or not as described goods.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging. The customer has the right to reject goods that are faulty, damaged or not as described and the right to a repair, replacement or refund in this circumstance.

In the case of goods ordered incorrectly (due to customer misunderstanding) or customers changing their minds post-purchase, we do not and are not legally required to offer refunds or accept returns, but instead can offer to exchange goods or provide store credit at our (Chester Cycle Hub Ltd.'s) discretion.

Any goods purchased on special order (products not currently or regularly stocked by Chester Cycle Hub Ltd.) are strictly not eligible for refund or return due to incorrect selection by the customer or the customer changing their mind post-purchase (If the special order is faulty, damaged or not as described, in accordance with the consumer rights act of 2015 it will be eligible for return and either refund, replacement or repair).

Please note that in some case, replaced, repaired or exchanged items may differ in colour or style due to the originally purchased product if the originally purchased product is no longer available, discontinued or otherwise changed.

Your legal rights
When you buy goods from a business, in law you have a number of rights as a consumer. These include the right to claim a refund, replacement, repair and/or compensation where the goods are faulty or misdescribed.

2022 Mondraker Foxy Full Suspension Aluminium Mountain Bike in Black

Season:2022

Brand:Mondraker

Code:FOXY

The Foxy is Mondraker's all mountain/enduro powerhouse! With enough travel to take you down the roughest, toughest descents, whilst maintaining the poise needed for comfortable climbing, this go-everywhere, do-it-all mountainbike is ready to deliver speed and fun in equal measure, no matter where you take it.

Key Features:

Zero Suspension Platform - Mondraker's patented suspension design creates a virtual pivot point which all but eliminates pedal-bob when putting down the power whilst providing excellent tracking and absorbtion once you point the bike downhill!

DT Swiss E1900 Wheelset - Mondraker know that a good wheelset makes a big difference. With this in mind they spec all their bikes, even at entry level builds, with wheels built to stand the test of time and all the abuse you can throw at them.

Fox Float Suspension - With a 160mm Fox Float 36 Rhythm fork up front and 150mm of rear travel provided by a Fox Float Performance DPS shock, the Foxy is equipped for any terrain you point it down. From bike parks to alpine descents, you can rest easy knowing that with a Foxy, you've got the right tool for the job.


Technical Information
  • frame

    Frame

    Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

    sizes

    Sizes

    S: 380mm / M: 420mm / L: 470mm / XL: 510mm

  • rear shock

    Rear shock

    Fox Float DPS LV EVOL Performance, 205x62.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 22.2x10mm bottom bushings

    shock settings

    Shock settings

    Light compression, extralight rebound, air volume spacer 0.6

  • fork

    Fork

    Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload

    headset

    Headset

    ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

  • stem

    Stem

    ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

    handlebar

    Handlebar

    ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

  • grips

    Grips

    ONOFF Diamond, 1lock-on, 135mm

    seatpost

    Seatpost

    ONOFF Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm

  • saddle

    Saddle

    SDG BEL-AIR 3.0, LPU foam, steel rails

    front brake

    Front brake

    SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

  • rear brake

    Rear brake

    SRAM G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

    brake lever

    Brake lever

    SRAM G2 R, tool-free reach adjust

  • rims

    Rims

    DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes

    spokes

    Spokes

    DT Champion, straightpull

  • front hub

    Front hub

    DT 370, Boost 15x110mm, IS 6 bolts

    rear hub

    Rear hub

    DT 370, Boost 12x148mm, 18T ratchet LN system, IS 6 bolts,

  • front tire

    Front tire

    Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

    rear tire

    Rear tire

    Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

  • crankset

    Crankset

    SRAM SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm

    rings

    Rings

    32T, steel, X-Sync 2

  • bottom bracket

    Bottom bracket

    SRAM DUB BSA, sealed bearings, 73mm

    chain

    Chain

    SRAM SX Eagle, 12s, Powerlock

  • rear derrailleur

    Rear derrailleur

    SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

    shift levers

    Shift levers

    SRAM Trigger SX Eagle, 12s, X-Actuation 1:1

  • casette

    Casette

    SRAM PG-1210, 11-50T, 12s

    derailleur hanger

    Derailleur hanger

    Mondraker M068

  • weight

    Weight

    15.5 kg

Sizing Information
FRAME SIZESMLXL
ASeattube length380 mm420 mm470 mm510 mm
BToptube length606mm629mm654 mm676 mm
CBottom bracket drop-21 mm-21 mm-21 mm-21 mm
DBottom bracket height355 mm355 mm355 mm355 mm
EChainstay length435 mm435 mm435 mm435 mm
FSeat tube angle71°71°71°71°
GEffective seattube angle76°76°76°76°
HHeadtube angle66°66°66°66°
IFork Offset44 mm44 mm44 mm44 mm
JWheelbase1193 mm1222 mm1248 mm1274mm
KHeadtube length90 mm100 mm115 mm130 mm
LReach450 mm475mm495 mm515 mm
MStack606 mm615mm630 mm643 mm
