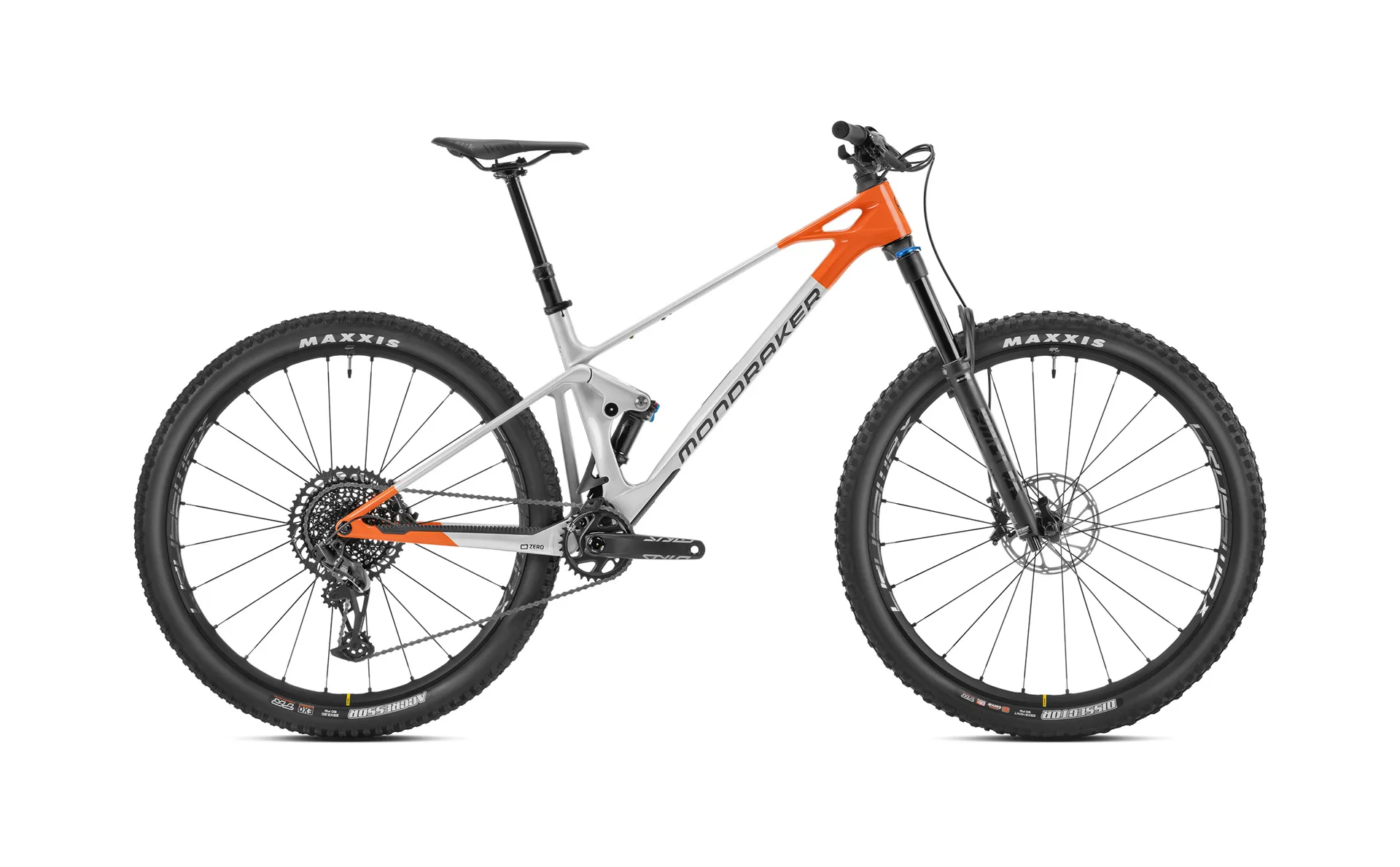

2023 Mondraker Raze Carbon R Carbon Full Suspension MTB in Orange

Season:2023

Brand:Mondraker

Code:RAZCAR23

THE RAZE CARBON R IS THE IDEAL BIKE IF YOU WANT AN AGGRESSIVE TRAIL BIKE WHICH ALSO PEDALS REALLY REALLY WELL

The RAZE CARBON R is the ideal bike if you want an aggressive trail bike which also pedals really really well. Its standout climbing characteristics mean that the only limit to your climbs will be your legs. Its effectiveness going up is unquestionable but best of all is that when you point it downwards it’s an amazing tool for the job. Its shock absorption, lightness and rigidity make it the best all-purpose bike bar none. Our exclusive STEALTH AIR FULL CARBON, ZERO SUSPENSION SYSTEM, FORWARD GEOMETRY and MIND technologies are of course also present in the CARBON R.

Technical Information

Frame
Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. Optional MIND System (EU only)
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Rear shock
Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
Light compression, light rebound, air volume spacer 0.6
Fork
Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset
Acros custom for 1-1/2" head tube, angular contact bearings40x52x7, Internal cable routing
Stem
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
ONOFF Desert, 1lock-on, 135mm
Seatpost
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle
Fizik Antares R7
Front brake
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram G2, SwingLink, tool-free reach adjust
Rims
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes
24 straight-pull double butted spokes
Front hub
Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub
Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts
Front tire
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset
Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings
32T, CNC-machined alloy, X-SYNC 2
Bottom bracket
Sram DUB BSA, sealed bearings, 73mm
Chain
Sram NX Eagle, 12s, Powerlock
Rear derrailleur
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Casette
Sram XG-1275, 10-52T, 12s
Derailleur hanger
Sram UDH
Weight
13,5 kg
