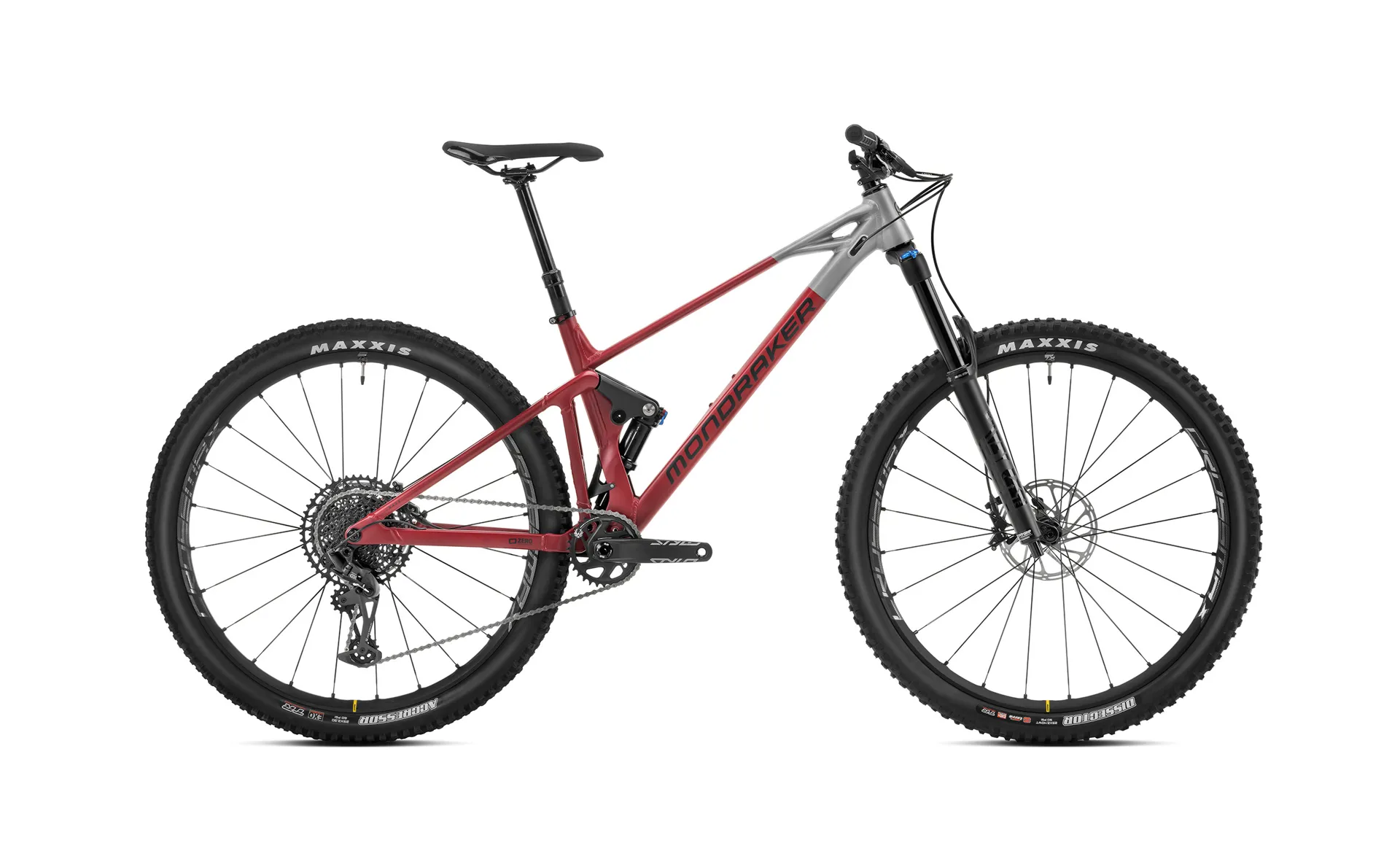

2023 Mondraker Raze R Alloy Full Suspension Mountain Bike

Season:2023

Brand:Mondraker

Code:RAZR23

NEW FOR THIS SEASON

New for this season, the RAZE R has the same features as the CARBON version, but with a frame made of aluminium alloy. It’s so adept at climbing that that when it’s time to head downhill you’ll be stunned by its levels of shock absorption and manageability. Fun is quite simply one of the RAZE R’s greatest strengths. With 150mm of travel at the front and 130mm at the back, the RAZE R features a Fox 36 Float fork mated with a Fox Float shock; SRAM GX/SRAM NX Eagle 12-speed drivetrain; Mavic Crossmax XL wheels; SRAM G2 brakes; and ONOFF components.

Technical Information

Frame
Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Sizes
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock
Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
Light compression, light rebound, air volume spacer 0.6
Fork
Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset
ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
ONOFF Twin, 1lock-on, 135mm
Seatpost
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle
MDK series PU 2023
Front brake
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram G2 R, tool-free reach adjust
Rims
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes
24 straight-pull double butted spokes
Front hub
Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub
Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts
Front tire
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset
Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings
32T, CNC-machined alloy, X-SYNC 2
Bottom bracket
Sram DUB BSA, sealed bearings, 73mm
Chain
Sram NX Eagle, 12s, Powerlock
Rear derrailleur
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Casette
Sram XG-1230, 11-50T, 12s
Derailleur hanger
Sram UDH
Weight
~15
