With 150mm of travel up front and 130mm at the rear, the RAZE is no ordinary trail bike

Mondraker

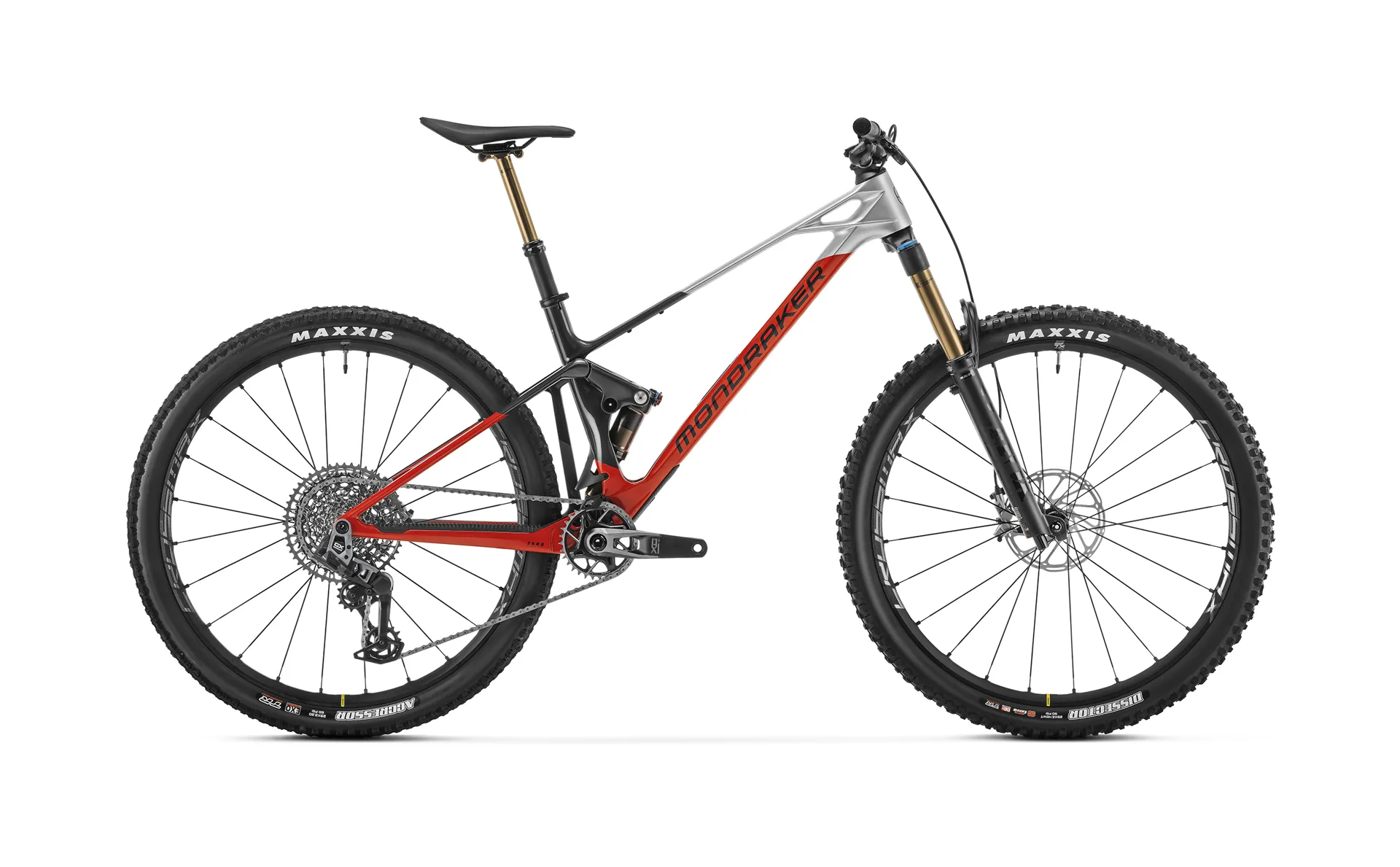

Mondraker Raze Carbon RR Full Suspension MTB in Red Silver

£5,399.00 £7,999.00 33% off

Size Guide

Earn

in Customer Rewards when you buy this item today

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Please See Our Returns Page For Full Returns Policy

RETURNS

----
Our policy

Our policy lasts 14 days. If 14 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

In relation to the consumer rights act of 2015 customers have up to 30 days to make a return in the case of faulty, damaged, or not as described goods.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging. The customer has the right to reject goods that are faulty, damaged or not as described and the right to a repair, replacement or refund in this circumstance.

Any goods purchased on special order (products not currently or regularly stocked by Chester Cycle Hub Ltd.) are strictly not eligible for refund or return due to incorrect selection by the customer or the customer changing their mind post-purchase (If the special order is faulty, damaged or not as described, in accordance with the consumer rights act of 2015 it will be eligible for return and either refund, replacement or repair).

Please note that in some case, replaced, repaired or exchanged items may differ in colour or style due to the originally purchased product if the originally purchased product is no longer available, discontinued or otherwise changed.

Your legal rights
When you buy goods from a business, in law you have a number of rights as a consumer. These include the right to claim a refund, replacement, repair and/or compensation where the goods are faulty or misdescribed.

Mondraker Raze Carbon RR Full Suspension MTB in Red Silver

Season:2024

Brand:Mondraker

Code:MRCRRMY24RS

With 150mm of travel up front and 130mm at the rear, the RAZE is no ordinary trail bike. Its kinematics and the specific settings of its suspensions give it capabilities never seen before in the discipline. What’s more it boasts the market leading technologies only found on our range-topping bikes: STEALTH AIR FULL CARBON, ZERO SUSPENSION SYSTEM, FORWARD GEOMETRY and MIND. Its carbon frame is hand built using layers which are carefully arranged, depending the area of the frame in question, to achieve specific purposes and objectives thus achieving a stylized structure that provides maximum comfort and vibration damping along with an extremely light weight combined with very high strength. Last season it was chosen as the best trail bike of 2022 by the prestigious MBR (Mountain Bike Rider) magazine in the United Kingdom.

Technical Information

Frame
Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Rear shock
Fox Float Factory Kashima EVOL, 205x57.5mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
Light compression, light rebound, air volume spacer 0.6
Fork
Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offsete. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Acros custom for 1-1/2" head tube, angular contact bearings40x52x7, Internal cable routing
Stem
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm
Seatpost
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm
Saddle
Fizik Vento Argo X5
Front brake
Sram Level Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram Level Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram Level Bronze, tools-free reach adjust, lever pivot bushings
Rims
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes
Mavic 24 straight-pull double butted spokes
Front hub
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Front tire
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset
Sram X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55
Rings
32T, CNC-machined alloy, T-Type
Chain
Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur
Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s
Shift levers
Sram Eagle AXS Pod MMX, 12s
Casette
Sram XS-1275, 10-52T, T-Type, 12s
Weight
13,4 kg
