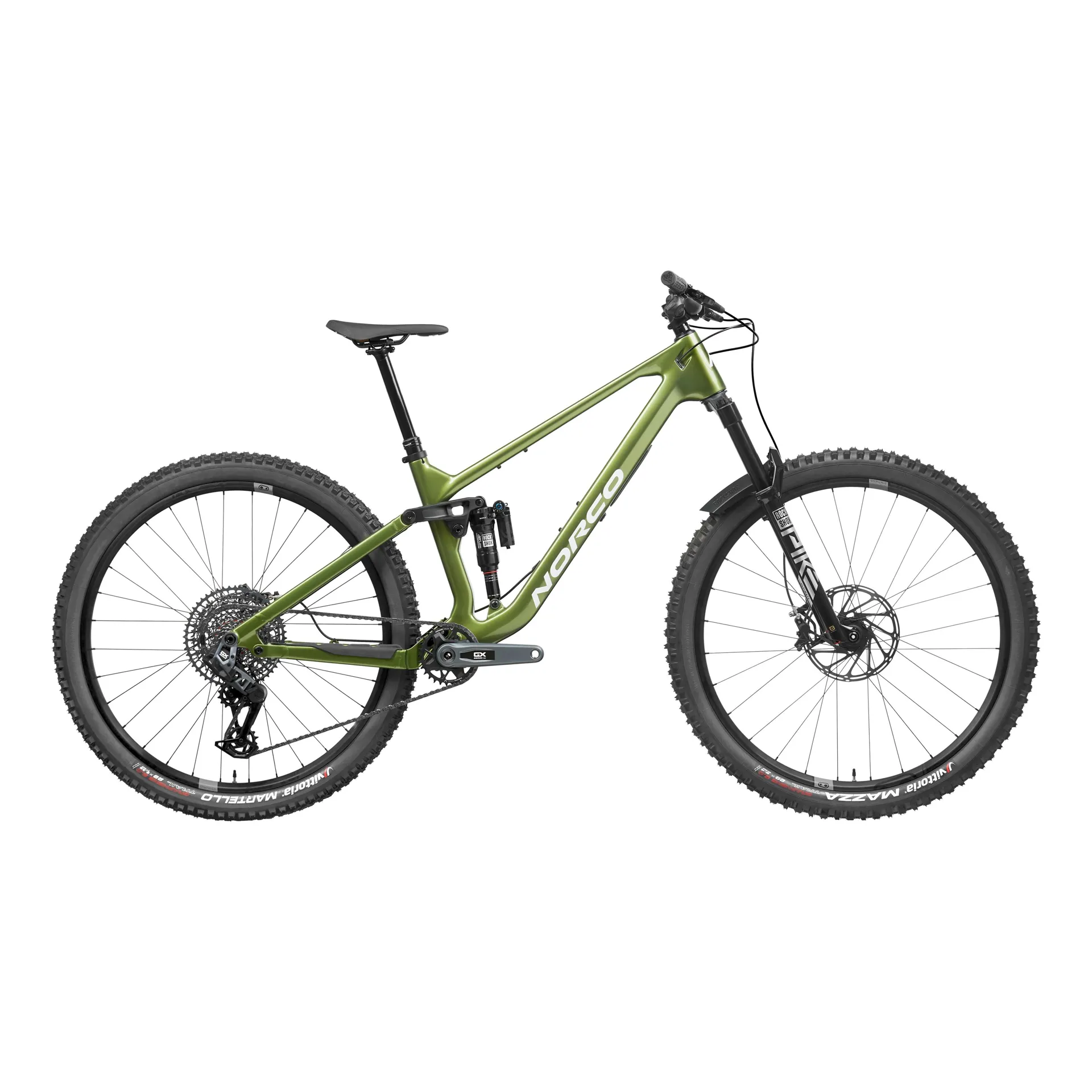

Norco:
the new norco fluid fs carbon lightens up your trail ride so every time out is the best time out.
Check it everything fluid fs, now in carbon
upping the ante on everybody’s favourite trail rig, the fluid fs carbon features a 600g lighter main triangle with all the strength and fine-tuned potential that experienced or evolving riders need. Right now, and down the trail, too
thread the needle
fluid’s geometry, suspension kinematics and precision setup have achieved near-legendary status – so why mess with a success? Fluid carbon delivers the goods on all types of trails with a little less junk in the trunk.
Pushing the envelope
refining the ride and dropping 600 grams from a trail frame benefits everyone – but only if it’s up to the task. The fluid carbon aced every test we subjected it to - in the lab, and on the trail
custom tuned suspension
precision-engineered 130mm rear suspension features custom-tuned dampers co-developed with shock manufacturers provides fully customized suspension setup and performance.
Room to move
long-travel, sizespecific 34.9mm dropper posts and low-slung top tubes create lots of room to move, letting you roll confidently through challenging terrain.
You ask, fluid answers
with balanced,progressive geometry, kinematics and superior pedal efficiency, fluid fs carbon tackles technical terrain with confidence, and attacks high speed pedaling sections with a big ol’ grin
ride aligned™
the ride aligned™ design system matches each fluid fs carbon to the human who rides it. Rider-first geometry and suspension kinematics are precision tuned in minutes with the ride aligned™ bike setup guide.
Specifications
frame carbon fibre main triangle, aluminum stays, 130mm travel, udh, eagle transmission compatible, ride aligned™
fork Rockshox pike ultimate, 140mm travel, 44mm offset, fender
rear shock Rockshox super deluxe ultimate, 210x50mm, custom tune
headset fsa sealed bearing, tapered
grips wtb wavelength
handlebar one up carbon, 800mm, 20mm rise
stem 6061 alloy, 40mm length, 35mm clamp
seatpost sdg tellis vs adjustable dropper, 34.9mm, 150mm (s), 170mm (m), 200mm (l, xl)
saddle fizik alpaca terra with wingflex
front brake SRAM g2 rsc, organic pads
front brake rotor SRAM centerline, 200mm
rear brake SRAM g2 rsc, organic pads
rear brake rotor SRAM centerline, 180mm
brake levers SRAM g2 rsc
rear shifter SRAM pod controller with mmx
rear derailleur SRAM GX eagle axs t-type
cassette SRAM 1275 t-type, 10-52t
chain SRAM GX eagle t-type
crankset SRAM GX dub t-type, 30t, 170mm (s), 175mm (m - xl)
pedals n/a
bottom bracket SRAM dub bsa threaded
front hub crank brothers synthesis, 15x110mm boost, 6 bolt
rear hub crank brothers synthesis, 15x110mm boost, 6 bolt
spokes/nipples stainless, black
rims crank brothers synthesis enduro alloy wheelset, 29”
front tire vittoria mazza 2.4” trail g2.0, folding
rear tire vittoria martello 2.35” trail g2.0, folding
