Bmc:

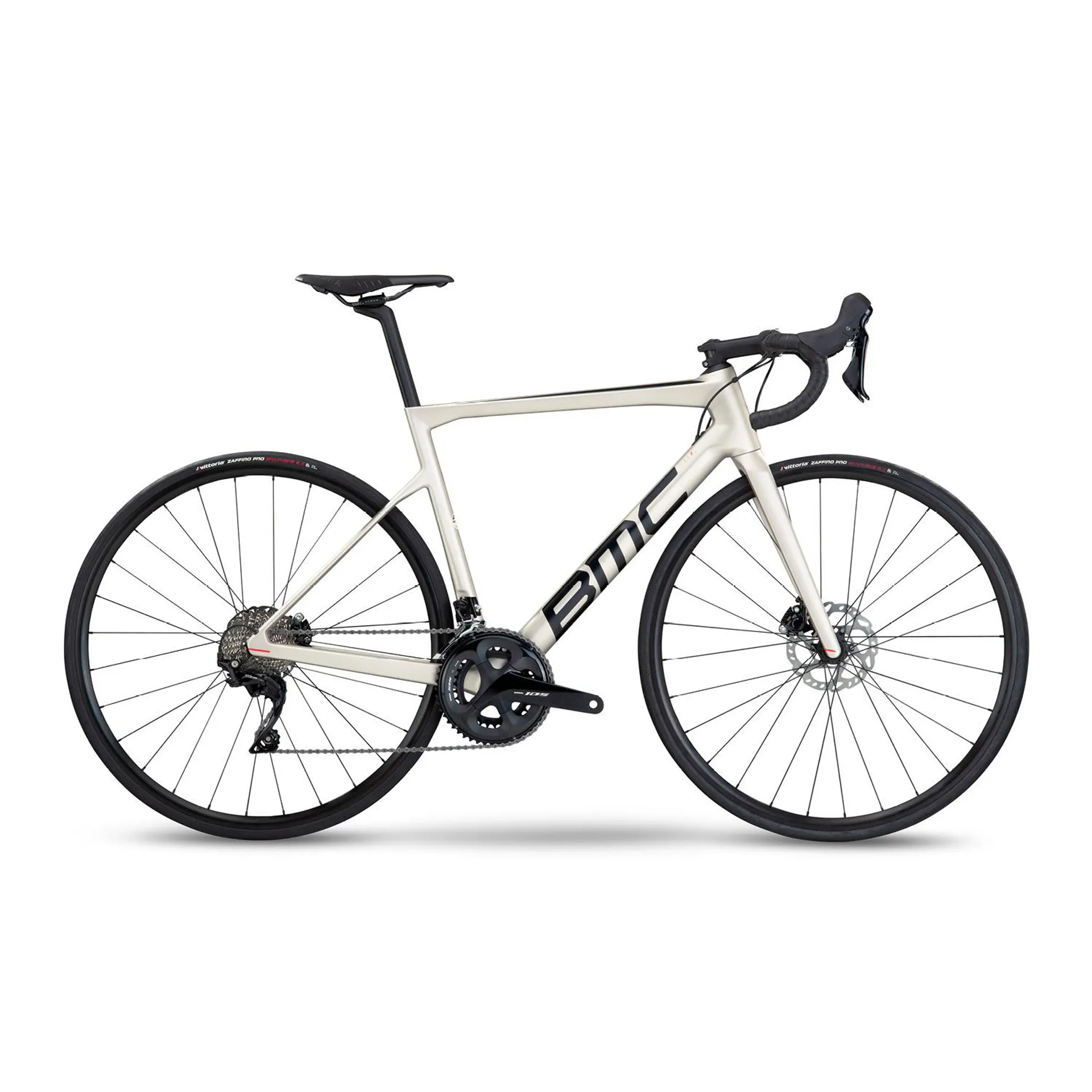

The legendary performance of the teammachine slr in a widely accessible package. Designed with tcc race technology in the teammachine slr carbon frame and fork as well as stealth dropouts and internal cable routing, this road bike understands the meaning of high performance. The teammachine slr five is finished with electronic Shimano 105 Di2 shifting, a mavic open disc wheelset, and our proprietary aluminium bar and stem for a stellar ride.
Accelerated composites evolution technology+ (ace+)
ace+ not only generates thousands of virtual frameset prototypes to satisfy stiffness, weight and compliance targets, but now also includes a forth key factor, aerodynamics.
Integrated cockpit system (ics2)
all-new ics2, with significant weight savings, high stiffness, clean aesthetics and integrated device mounts for the most popular devices.
Aerocore design
our aerocore system consists of two superlight carbon cages that seamlessly integrate with the reshaped down tube and seat tube, resulting in significant drag reduction when used with bottles.
D-shape seatpost
the new d-shape compliance post's carbon layup was designed using tcc endurance technology for tailored comfort.
Comfort is speed
the new teammachine slr is more compliant than ever, thanks to the latest evolution of the tun compliance concept (tcc) technology. Fine tuning of the carbon layups, essential vertical frame and seat post flex, to improve traction and control, resulting in reduced muscle fatigue.
Bottom bracket and torsional stiffness
renowned for its power transfer, the new teammachine slr goes one step further, with its new down tube shape and optimised carbon layup providing even greater bottom bracket shell support.
Fork profile
an aerodynamically reshaped fork with stealth dropout design and integrated thru-axle nut show that high technical proficiency can go hand in hand with beautiful, minimalist aesthetics.
Specifications
frame
teammachine slr carbon with aerocore design
stealth dropout design
tcc race compliance level
pf86 bottom bracket
flat mount disc
12x142mm thru-axle
optimized for aerocore bottle cages
fork
teammachine slr carbon
tcc race compliance level
internal cable routing
flat mount disc
stealth dropout design
12x100mm thru-axle
gears
2x12
chainwheel
shimano 105 r7100 50-34t
cassette
shimano 105 r7100 11-34t
chain
shimano 105 12spd
rear derailleur
shimano 105 di2
shifters
shimano 105 di2
brakes
shimano 105 - sm-rt70 rotors (160/140)
handlebar
bmc rab 03 - ergo top shape - compact bend
stem
bmc rsm01
seatpost
teammachine slr carbon d-shaped seatpost
15mm offset
saddle
fizik antares r7
hubs
cl-712 (f)/rxc-1425 (r) - thru axle
rims
mavic open disc
tires
vittoria rubino - 25mm
tire clearance
30mm (measured width)
weight limit
110 kg
astm classification
level 1
