Our top-spec, no-holds-barred Rifty, the Marin Rift Zone E2 packs a powerful punch but still keeps that price tag down to earth.
Our top-spec, no-holds-barred Rifty, the Marin Rift Zone E2 packs a powerful punch but still keeps that price tag down to earth.
Marin

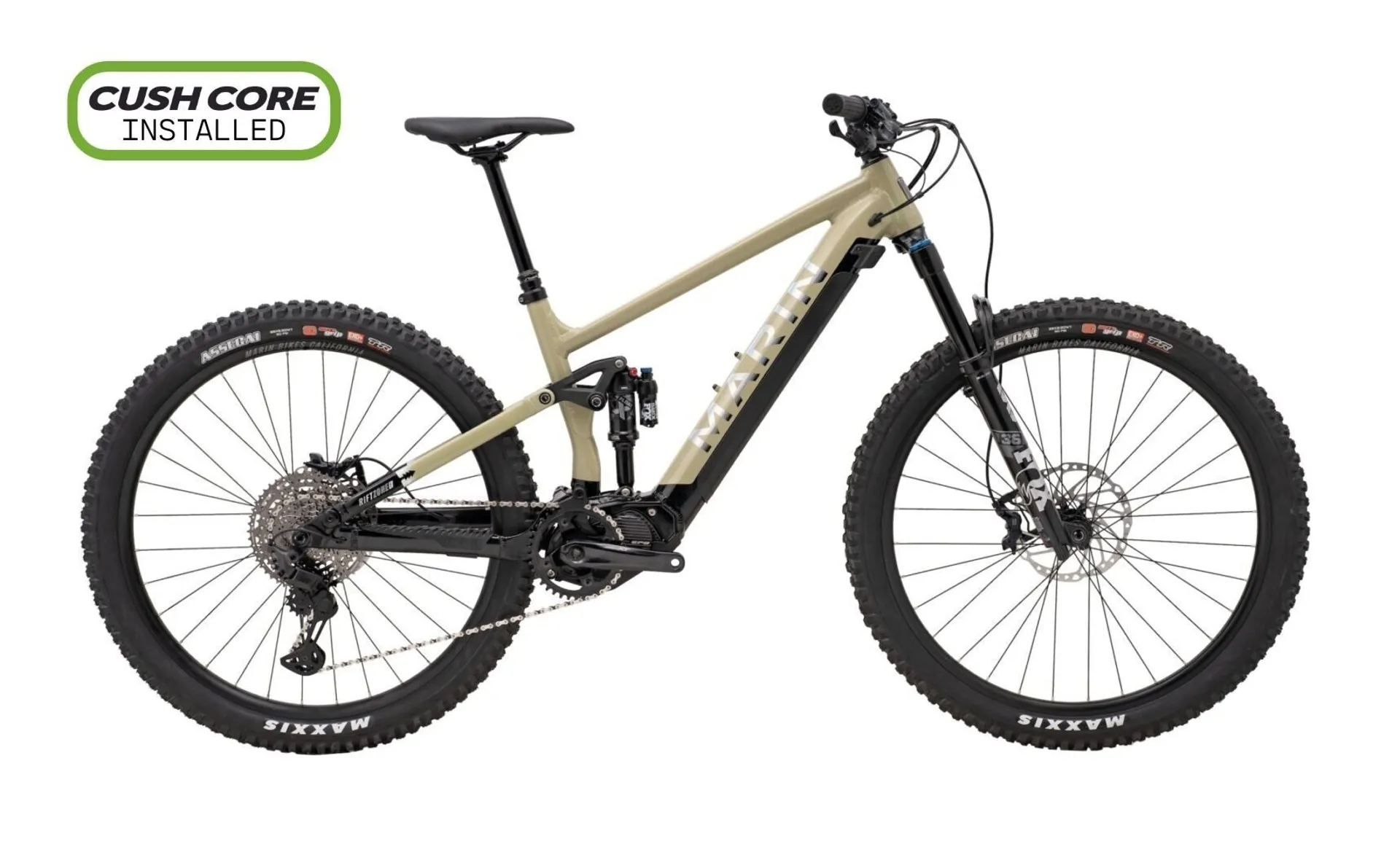

Marin Rift Zone E2 Sand Black 29

£4,499.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Please See Our Returns Page For Full Returns Policy

RETURNS

----
Our policy

Our policy lasts 14 days. If 14 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

In relation to the consumer rights act of 2015 customers have up to 14 days to make a return in the case of faulty, damaged, or not as described goods.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging. The customer has the right to reject goods that are faulty, damaged or not as described and the right to a repair, replacement or refund in this circumstance.

In the case of goods ordered incorrectly (due to customer misunderstanding) or customers changing their minds post-purchase, we do not and are not legally required to offer refunds or accept returns, but instead can offer to exchange goods or provide store credit at our (Chester Cycle Hub Ltd.'s) discretion.

Any goods purchased on special order (products not currently or regularly stocked by Chester Cycle Hub Ltd.) are strictly not eligible for refund or return due to incorrect selection by the customer or the customer changing their mind post-purchase (If the special order is faulty, damaged or not as described, in accordance with the consumer rights act of 2015 it will be eligible for return and either refund, replacement or repair).

Please note that in some case, replaced, repaired or exchanged items may differ in colour or style due to the originally purchased product if the originally purchased product is no longer available, discontinued or otherwise changed.

Your legal rights
When you buy goods from a business, in law you have a number of rights as a consumer. These include the right to claim a refund, replacement, repair and/or compensation where the goods are faulty or misdescribed.



Marin Rift Zone E2 Sand Black 29

Brand:Marin

Code:Marin Riftzone E2

We’ve hand-picked hard-charging Fox suspension, a top-performance Shimano STEPS EP8 drive unit, Shimano’s XT 11-speed drivetrain and a 630WH battery for maximum range. And we’ve included CushCore tire inserts and Marin tubeless sealant straight out of the box.

  • Shimano EP8 Drive Unit
  • Fox 38/Float X Performance Elite Suspension
  • Shimano Deore XT LINKGLIDE 11-Speed Drivetrain
  • TRP DH-R Evo 4-Piston Hydraulic Disc Brakes
Technical Information

SPECIFICATIONS

  • FRAME

    All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

  • FORK

    Fox 38 Performance Elite, 140mm travel, 29", 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender

  • SHOCK

    Fox Float X, Performance Elite Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, M8x30mm Top, M8x25mm Bottom

  • RIMS

    Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible

  • HUB REAR

    Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body

  • HUB FRONT

    Shimano FH-TC500, 110x15mm, Centerlock , 32H

  • SPOKES

    14g Black Stainless Steel

  • TIRES

    Vee Tire Co Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing

  • DERAILLEUR REAR

    Shimano, Deore XT RD-M8130, 11-Speed, SGS, LinkGlide

  • SHIFT LEVER

    Shimano Deore XT SL-M8130-R, LinkGlide, I-Spec EV

  • CRANKSET

    Shimano XT M8150, 160mm Length, 38t Chainring

  • MOTOR

    Shimano Steps EP801 Drive Unit, 250W, 85Nm

  • CHAIN

    KMC E-11S

  • CASSETTE

    Shimano XT LinkGlide LG-600, 11-Speed, 10-50T

  • BRAKE FRONT

    TRP DH-R EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick

  • BRAKE REAR

    TRP DH-R EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick, with Magnet

  • BRAKE LEVERS

    TRP DH-R EVO

  • HANDLEBAR

    Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

  • STEM

    Marin CNC, 35mm Length, 35mm Bar Bore

  • GRIPS

    Marin Grizzly Lock On

  • HEADSET

    FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

  • SEATPOST

    X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm

  • SADDLE

    Marin eMTB Saddle

  • PEDALS

    Marin MTB Plastic

  • BATTERY

    Shimano BT-EN806, Internal 630Wh

  • DISPLAY

    Shimano SC-E600

  • SWITCH

    Shimano SW-EN600L Left Hand Switch for Assist Mode Change

  • EXTRAS

    Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide, CushCore Tire Inserts and Valve Stems, Marin Tire Sealant 300ml, Squeeze Top with Valve Core Removal Tool Cap

Specifications, pricing, and availability are subject to change without notice.

Sizing Information

GEOMETRY

Rift Zone E2 geometry diagram
SMLXL
STACK606.98614.04625.1634.16
REACH445465485515
HEADTUBE ANGLE65°65°65°65°
HEADTUBE LENGTH100110120130
SEATTUBE ANGLE77°77°77°77°
SEATTUBE LENGTH390400425435
TOPTUBE EFFECTIVE585.13607.22629.32661.41
BB HEIGHT348.5348.5348.5348.5
BB DROP32323232
CHAINSTAY440440440440
WHEELBASE1198.291222.521246.741280.97
STANDOVER HEIGTH693.65696.01709.94719.93
FORK OFFSET44444444
SEATPOST DIAMETER30.930.930.930.9
HANDLEBAR WIDTH800800800800
STEM LENGTH35353535
CRANK LENGTH160160160160

All lengths in millimeters
