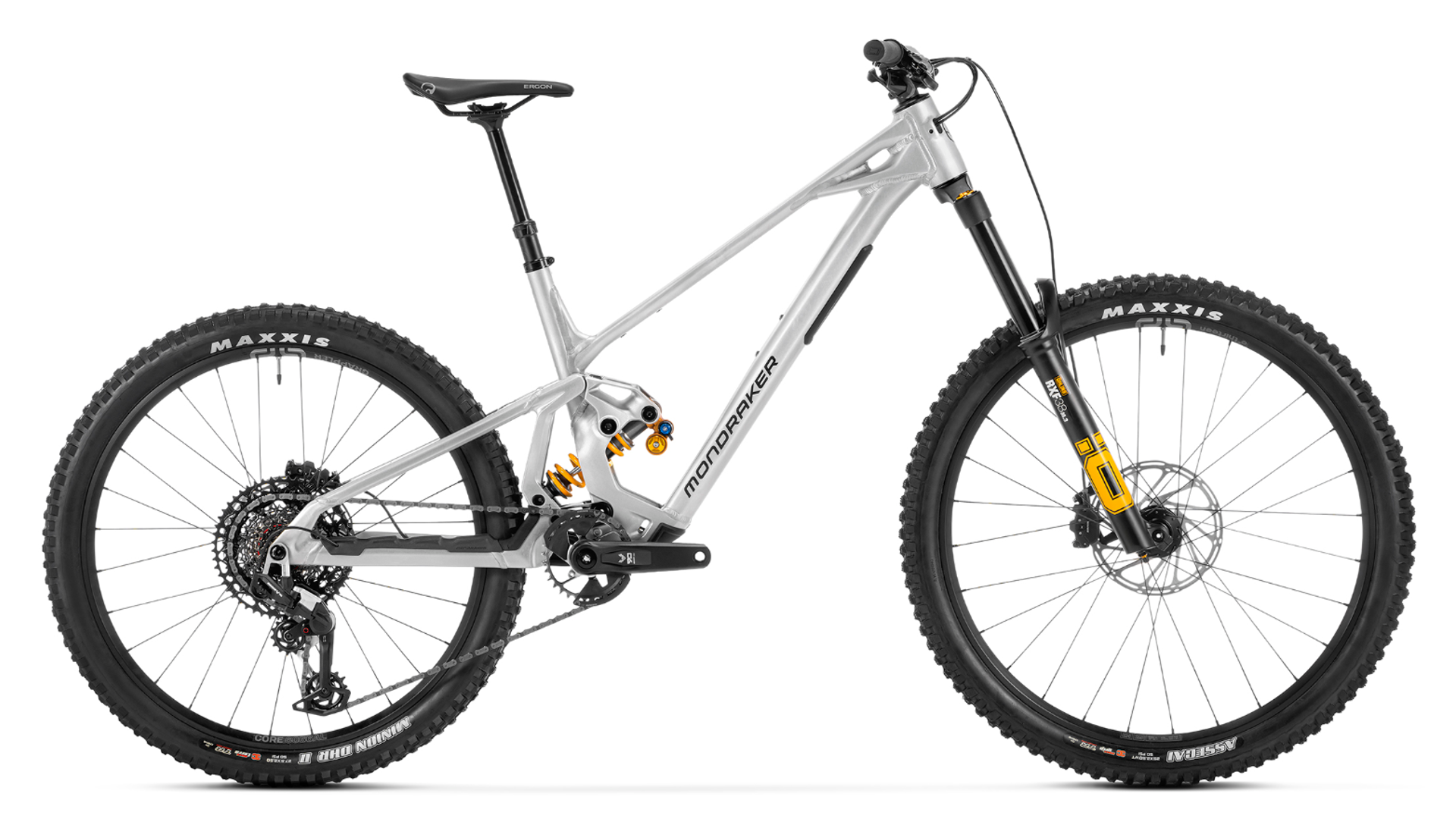

Mondraker Anark XR Full Suspension Mountain Bike in Raw

Season:2026

Brand:Mondraker

Code:MNDANRKXRALU

The all-new ANARK enters the Mondraker gravity line-up for 2026, designed with a fun-first approach and slides straight into the bike park and freeride category.

ANARK brings modern geometry, kinematics and performance to the wilder side of riding. It’s about the most fun you can have on a mountain bike. We’re talking face aching grins; sock marks on dusty shins and that urge for one last party train. ANARK is all about getting in that bike park shred state.

Slappin’ turns and spraying dirt.

Bike parks and trails designed for maximum fun are on the up, and the new ANARK is the bike to find your shred state on. It builds on the success of the Foxy platform and pulls from the MFR race development programme to offer our most exciting long travel gravity rig to date.

Features:

- Ohlins Suspension Package
- SRAM Eagle 90 Transmission
- E-Thirteen Wheels
- 170mm rear, 180mm front travel

Technical Information

Frame
Anark 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 170mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05
Sizes
S: 440mm / M: 460mm / ML: 480mm / L: 500mm / XL: 520mm
Rear shock
Öhlins TTX 22M.2 Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound. Trunnion top mount, 30x8mm bottom bushings
Shock settings
C10 compression, R20 rebound. Spring rate: S size 343 lbs, M size 411 lbs, size ML 457 lbs, L size 502 lbs, XL size 502 lbs
Fork
Öhlins RXF 38 M.3 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset
Onoff custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle
Ergon Enduro SPS20
Front brake
Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust
Rims
e*thirteen Grappler Core, IW30 Hookless, 6066 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
Rear tire
Maxxis Minion DHR II 27''5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH protection, 60x2TPI, folding bead
Crankset
Sram 90 T-Type, Boost, DUB axle, Direct mount chain ring, S size: 165mm M size: 165mm ML size: 165mm L size: 170mm XL size: 170mm, CL 55
Rings
32T, Alloy, T-type
Bottom bracket
Sram DUB BSA, sealed bearings, 73mm
Chain
Sram 70 T-Type, 12s Flattop, PowerLock
Rear derrailleur
Sram 90 Eagle, T-Type, 12s
Shift levers
Sram Trigger 70, 12s, T-Type Actuation
Casette
Sram XS-1270, 10-52T, 12s
Weight
17,9 kg
