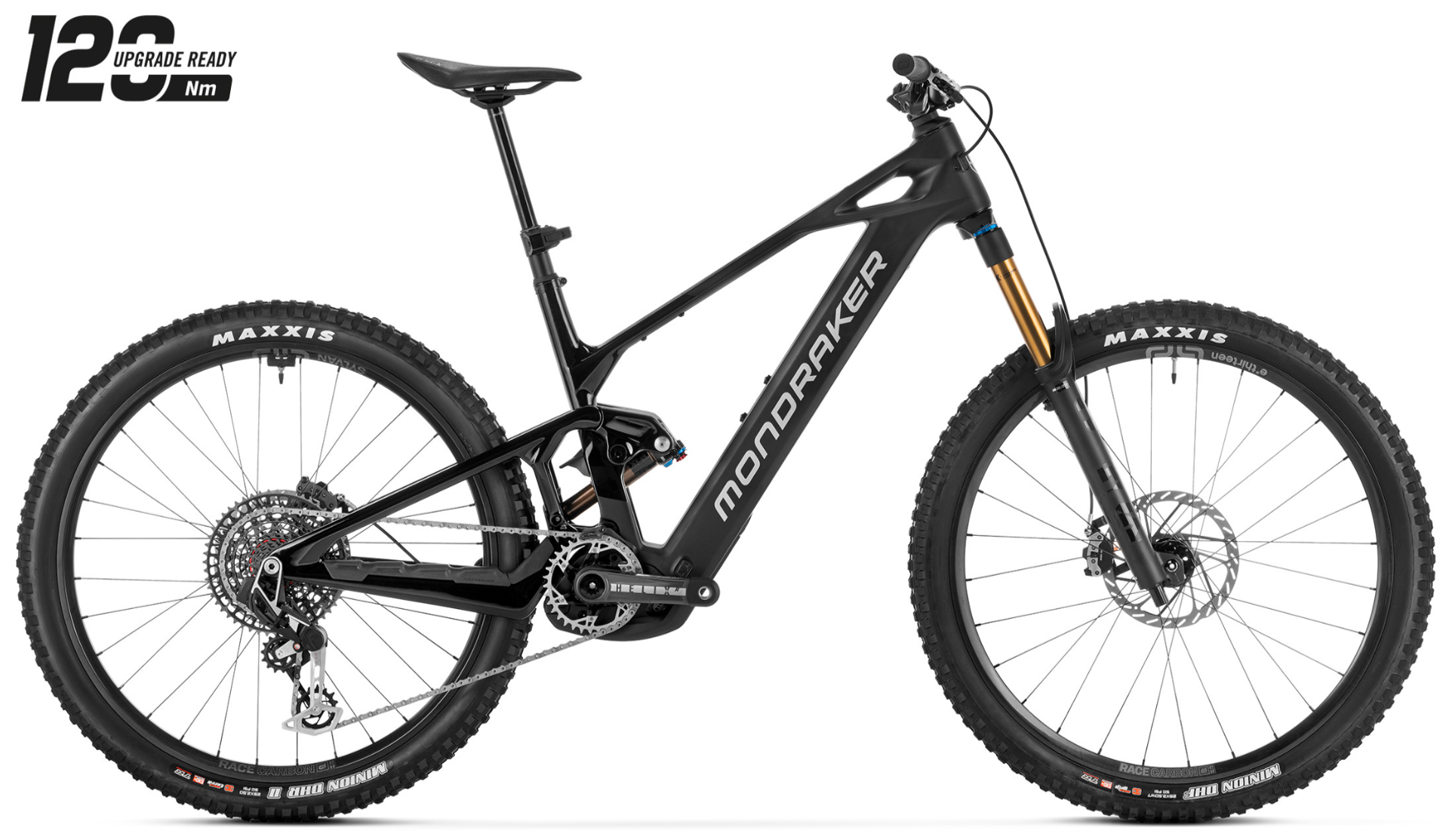

Mondraker Crafty Carbon RR SL Electric MTB in Black

Season:2026

Brand:Mondraker

Code:Crafty Carbon RRSL Black

The Mondraker Crafty RR SL boasts the lightest Crafty build spec on the market. Featuring premium carbon fiber component, including a full carbon fibre frame, 600wH battery to lower overall system weight and the range topping SRAM XX AXS Transmission drivetrain.

Technical Information

Frame
Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
Fox Float Factory Kashima EVOL 185x55mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CM compression, SCLRM5.2 rebound, CML, 0.2 volume spacer
Fork
Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock
Stem
Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Handlebar
Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
RockShox Reverb Stealth AXS, diameter 31.6mm S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm
Saddle
Fizik Vento Argo 00 Carbon 150mm
Front brake
Sram Maven Ultimate, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Maven Ultimate, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Maven Ultimate , SwingLink and lever pivot bearings, tools-free reach adjust
Rims
e*thirteen Sylvan Race Carbon IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Front tire
Maxxis Minion DHF 29x2.5, tubeless ready, 3C Maxx Grip, EXO+ Protection, 60TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.5 tubeless ready, 3C Maxx Terra, EXO+ Protection, 60TPI, folding bead
Crankset
E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm
Rings
Sram XX Eagle 34T T-Type, direct mount, steel, CL55
Chain
Sram XX Eagle T-Type, 12s, Powerlock
Rear derrailleur
Sram XX Eagle AXS, T-Type, 12s
Shift levers
Sram Eagle AXS Pod MMX, 12s
Casette
Sram XS-1295, 10-52T, T-Type, 12s
Weight
20,9 kg
Display
Kiox 400C / Bosch Mini Remote
Motor
Bosch Performance Line CX RACE (25Km/h) SMART SYSTEM (BDU386Y)
Battery
Bosch Powertube 600Wh
