A limited and exclusive edition to celebrate the 10th anniversary of our most iconic bike.

Mondraker

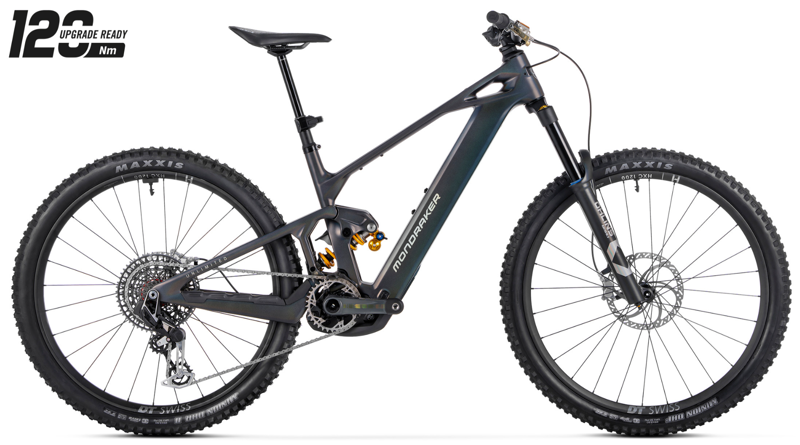

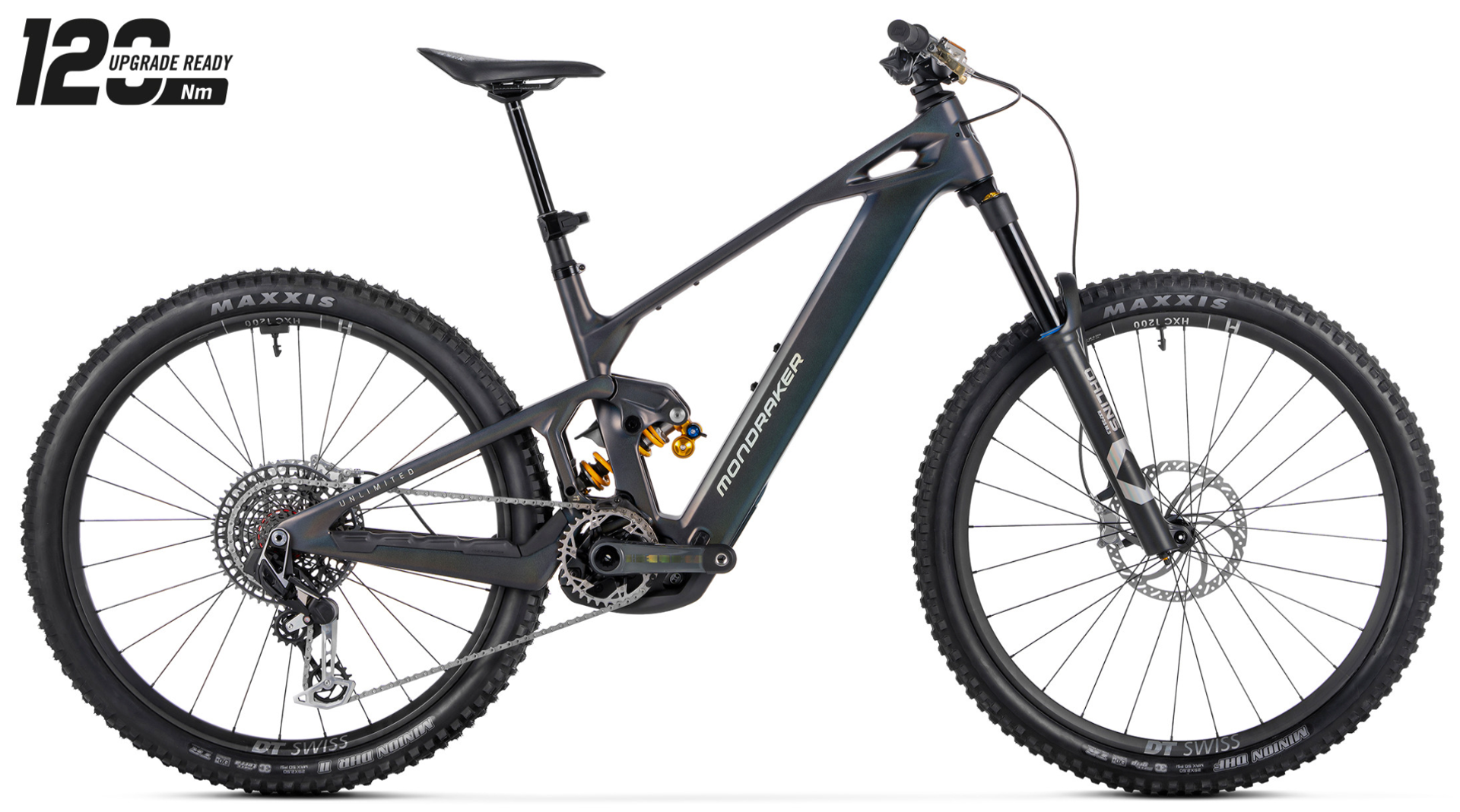

Mondraker Crafty Carbon Unlimited Icon Electric MTB In Black

£8,699.00 £11,699.00 26% off

Size Guide

Earn

in Customer Rewards when you buy this item today

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Please See Our Returns Page For Full Returns Policy

RETURNS

----
Our policy

Our policy lasts 14 days. If 14 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

In relation to the consumer rights act of 2015 customers have up to 30 days to make a return in the case of faulty, damaged, or not as described goods.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging. The customer has the right to reject goods that are faulty, damaged or not as described and the right to a repair, replacement or refund in this circumstance.

Any goods purchased on special order (products not currently or regularly stocked by Chester Cycle Hub Ltd.) are strictly not eligible for refund or return due to incorrect selection by the customer or the customer changing their mind post-purchase (If the special order is faulty, damaged or not as described, in accordance with the consumer rights act of 2015 it will be eligible for return and either refund, replacement or repair).

Please note that in some case, replaced, repaired or exchanged items may differ in colour or style due to the originally purchased product if the originally purchased product is no longer available, discontinued or otherwise changed.

Your legal rights
When you buy goods from a business, in law you have a number of rights as a consumer. These include the right to claim a refund, replacement, repair and/or compensation where the goods are faulty or misdescribed.

Mondraker Crafty Carbon Unlimited Icon Electric MTB In Black

Season:2026

Brand:Mondraker

Code:Crafty Carbon Unlimited I

It is rare for a bike to transcend its role as simply a bike and become something much greater. A symbol. A way of understanding e-mtb.An icon.

Crafty was born ten years ago, coinciding with the arrival of the first generation of the Bosch Performance Line CX: the first motor created specifically for e-mtb. It was then that we saw the opportunity to develop an electric bike designed from its core for mountain biking, our specialty.

The most versatile. The most complete. The bike capable of climbing the most technical trails and riding with confidence and stability on the fastest and most demanding descents. Mondraker’sZero Suspension system and Forward Geometry,optimised for the Crafty platform are combined to maximise traction, stability and control on any terrain.

To mark its tenth anniversary, we present the ultimate expression of the Crafty. A limited and exclusive edition created to celebrate its evolution. A unique and one-of-a-kind Crafty.The Crafty Unlimited ICON.

KEY SPEC HIGHLIGHTS:

Bosch Gen 5 Performance Line RACE Motor
Trickstuff Maxima Brakes
SRAM XX AXS Transmission
Carbon DT Swiss HXC1200 Wheelset
Ohlins Suspension
One-Of-A-Kind Custom Paint

Technical Information

Frame
Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
Öhlins TTX22M.2 185x55mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
C20 compression, R40 rebound. Spring rate: S size 411 lbs, M size 457 lbs, size ML 502 lbs, L size 548 lbs, XL size 605 lbs
Fork
Öhlins RXF 38 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Handlebar
Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
RockShox Reverb Stealth AXS, diameter 31.6mm S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm
Saddle
Fizik Vento Argo 00 Carbon 150mm
Front brake
Trickstuff Maxima, 7075 T6 CNC alloy 4 piston caliper, 203mm IS 6 bolts one-piece rotor
Rear brake
Trickstuff Maxima, 7075 T6 CNC alloy 4 piston caliper, 203mm IS 6 bolts one-piece rotor
Brake lever
Trickstuff Maxima, 7075 T6 CNC alloy, lever pivot bearings, tools-free reach adjust, Kevlar hose
Rims
DT Swiss HXC1200 Carbon Spline 29, 30mm internal width, hookless, tubeless ready, 28 spokes
Spokes
DT complite®Hybrid t-head
Front hub
DT 180, Boost 15x110mm, IS 6 bolts
Rear hub
DT 180, Boost 12x148mm, Ratchet EXP OS 42 system, IS 6 bolts, XD freehub
Front tire
Maxxis Minion DHF 29x2.5, tubeless ready, 3C Maxx Grip, EXO+ Protection, 600TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.5 tubeless ready, 3C Maxx Terra, EXO+ Protection, 60TPI, folding bead
Crankset
E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm
Rings
Sram XX Eagle 34T T-Type, direct mount, steel, CL55
Chain
Sram XX Eagle T-Type, 12s, Powerlock
Front derrailleur
Sram XX Eagle AXS, T-Type, 12s
Rear derrailleur
Sram Eagle AXS Pod Rocker, 12s
Casette
Sram XS-1295, 10-52T, T-Type, 12s
Display
Kiox 400 / Bosch Mini Remote
Motor
Bosch Performance Line CX-R(25Km/h) SMART SYSTEM (BDU386Y)
Battery
Bosch Powertube 800Wh
